ULTRASONIC WASHING MACHINES

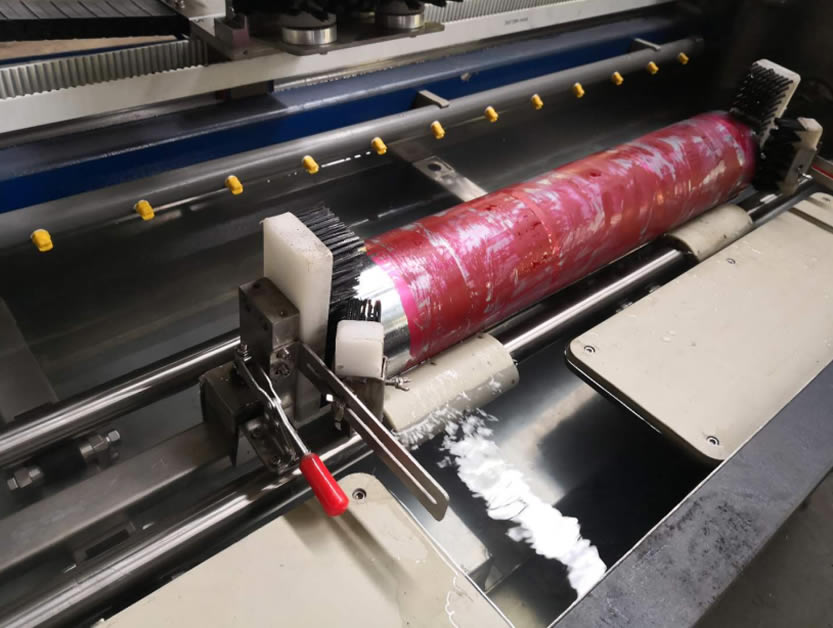

Gravure or Anilox Ultrasonic Washing Machine
Precision ultrasonic cylinder ink washing machine performance:



1. Hot dip. Decompose dirt and reduce the load on the next process. Ultrasound does not work.

2. Ultrasonic cleaning. Peel off the dirt and decompose the emulsified grease.

3. Cold rinse, spray wash. Spraying pure solvent

4. Pure water spray.

5. Blow dry. Quickly dry for packaging.

Specifications
Certification: CE Certificate
Automatic Grade: Semi-Automatic
Place of Origin: Shanxi, China (Mainland)
Brand Name: YUBO
Equipment size: 2325*800*1300mm
Cylinder size: 1400*400MM
Cylinder types: hollow and shaft both ok
Reserve liquid tank volume（L): 425
Working tank volume（L): 280
Total equipment power （kw) : 7.8
Ultrasonic power （kw): 1.8*2
Ultrasonic maximum frequency（KH): 40
Air pressure (MPA): ≤0.3MP
Cylinder rotation motor power（kw): 0.55
Spray pump power（kw): 0.26
Liquid filling pump power（kw): 0.37
Heating tube power（kw): 3
